retour à
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
437/22157
>
9900001
>
Bag Assy. No. 99-2535

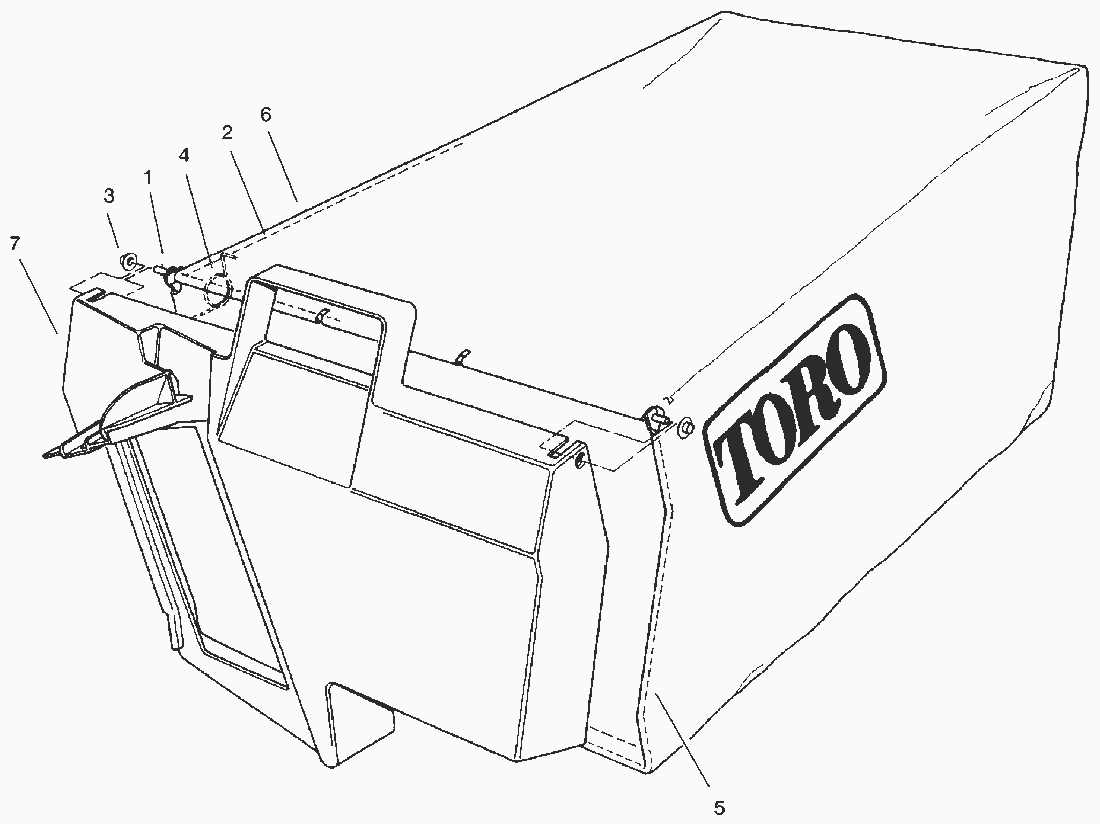

Listes de pièces de rechange pour Toro Roth / TORO Bag Assy. No. 99-2535
pos.
description
Numéro de référence
1
Hinge-Bag Door
33-4820
2
Frame-Bag Upper
42-4030
3
Push Nut-Washer Cap
3290-422
4
Spring
36-6910
5
Frame-Bag
42-4020
6
ASM-Grass Bag
98-9222
7
Door-Grass Bag
48-2840
