retour à
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
417/20829
>
210000001
>

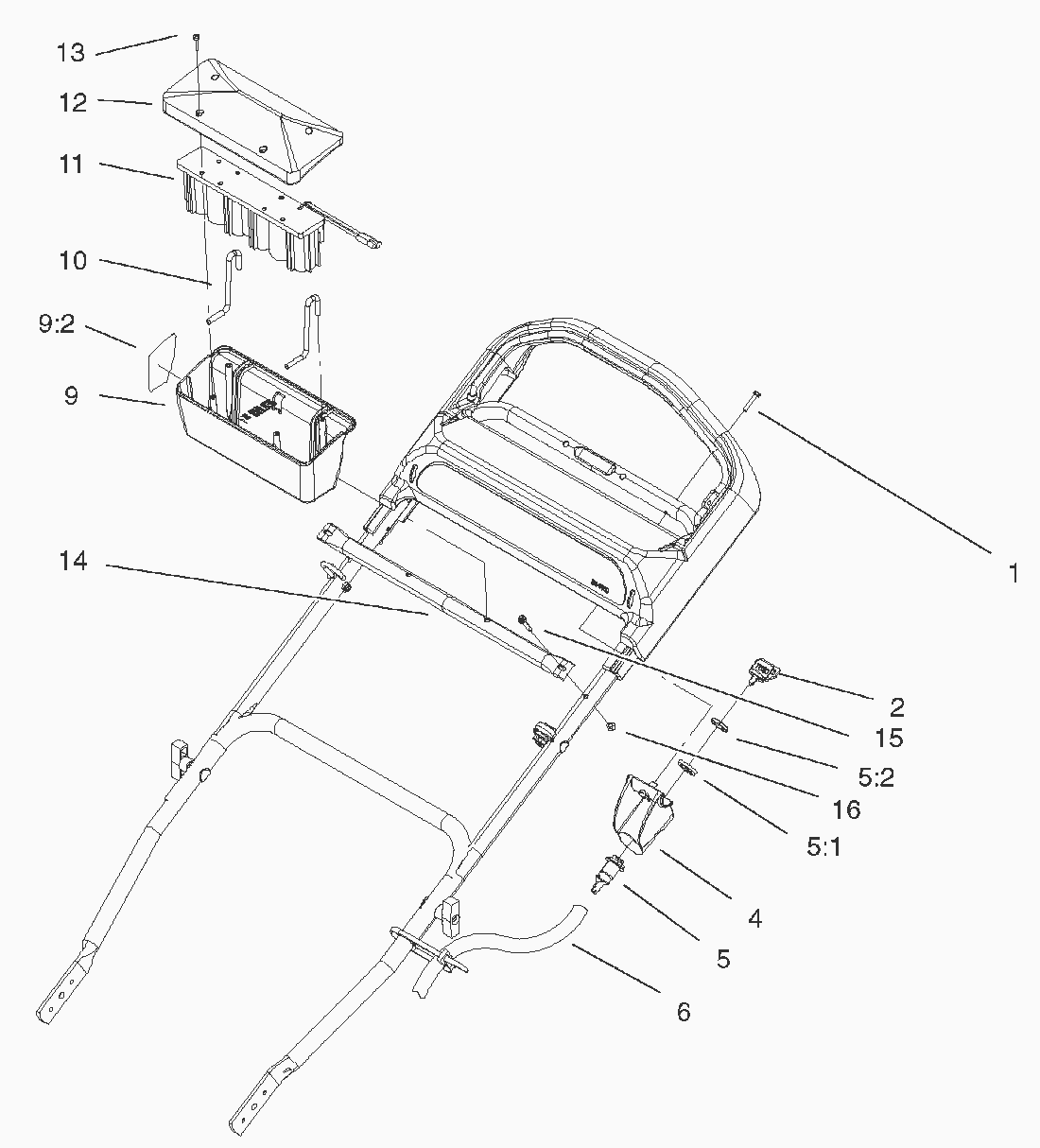

Electric Start Assy.
Listes de pièces de rechange pour Toro Roth / TORO Electric Start Assy.
pos.
description
Numéro de référence
1
SCHRAUBE
32144-97
2
Key-Ignition
63-8360
3
Hex Nut
218-461
4
Switch-Holder
99-6006
5
Switch-Starter (Incl. Ref.
46-5780
51
Lockwasher
3254-5
52
Hex Nut
218-461
6
Wire-Harness
104-7581
9
Box-Decal ASM
100-9117
92
Decal-Box, Battery
100-4369
10
Rod-Battery
99-5299
11
Battery
99-5296
12
Cover-Battery
99-5298
13
Screw
94-4496
14
Bar-Battery
104-7563-05
15
Screw-PPH
3250-52
16
Nut
3296-2
20
Charger-Battery
98-2391
