Murray 46430x89A - Yard King Performance 46" Garden Tractor (1998) Mower Housing Pièces détachées

Mower Housing 46430x89A - Yard King Performance 46" Garden Tractor (1998)

Murray Rasen- und Gartentraktoren 46430x89A - Yard King Performance 46

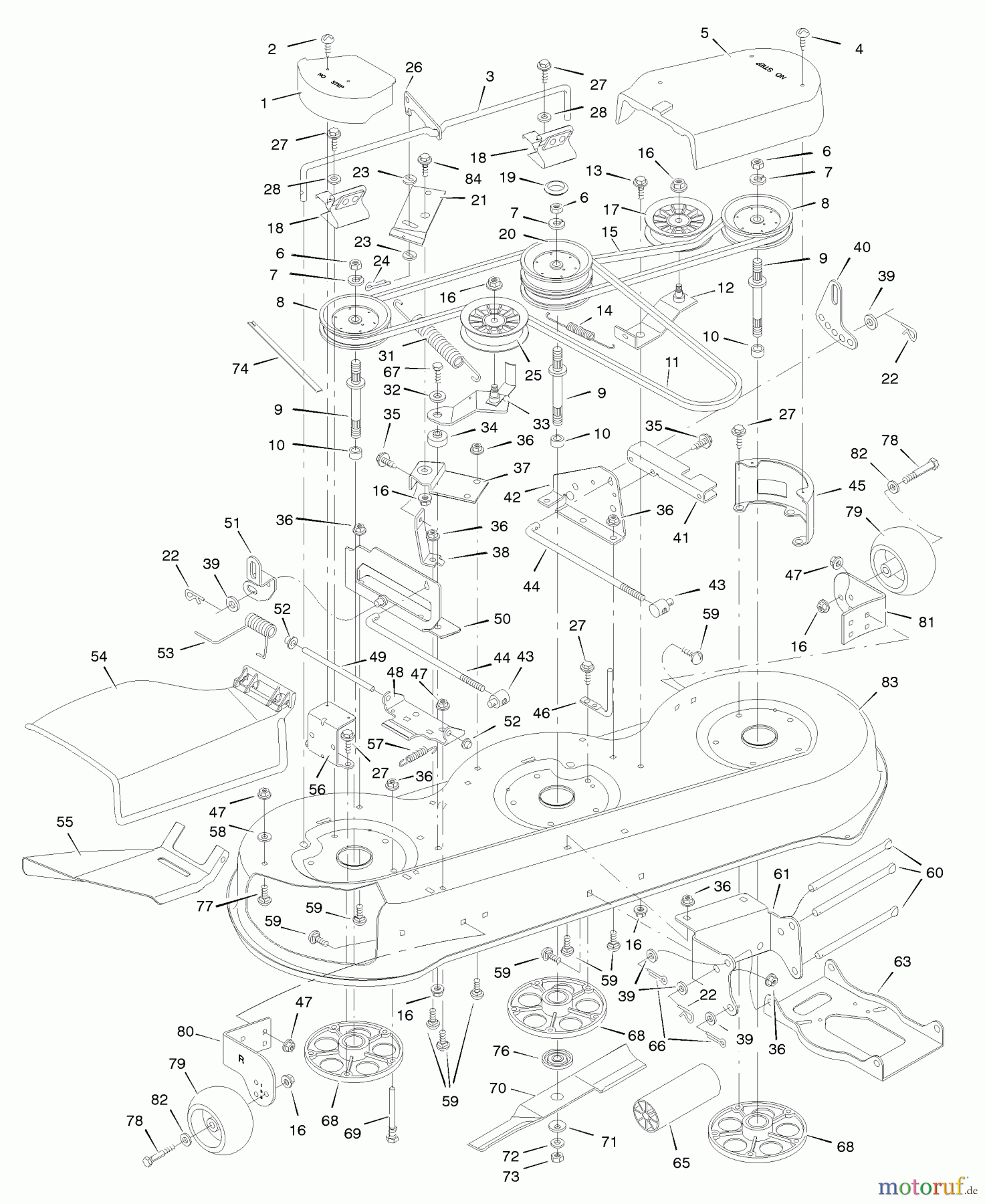

Vous trouverez ici le dessin de la pièce de rechange pour Murray Rasen- und Gartentraktoren 46430x89A - Yard King Performance 46" Garden Tractor (1998) Mower Housing. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Murray Rasen- und Gartentraktoren 46430x89A - Yard King Performance 46" Garden Tractor (1998) Mower Housing et commandez simplement en ligne. De nombreuses pièces de rechange Murray nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BS092145MACOVER-RH PULLEY
2 BS26X250MASCREW-TAPPING 10-16
3 BS092129ZMAROD-BRAKE
4 BS26X258MASCREW-THD.FORMING
5 BS092154MACOVER-LH PULLEY
6 Murray MUTTER.56-18 REG UNF Z-YBS15X100MAMUTTER.56-18 REG UNF Z-Y
7 BS018X33MAWASHER.56.96X.14 SPLI
8 BS092127MAPULLEY-JACKSHAFT 46
9 BS491921MABLINDWELLE
10 BS091925MASPACER-BEARING-P/M
11 BS037X69MARIEMEN-DECK ANTRIEB 80.10
12 BS094639E701MAUMLENKARM ASSY
13 BS009X39MAANSATZBOLZEN .38-16 X .
14 BS165X79MASPRING-EXTENSION
15 BS037X66MABELT-SECONDARY 47.10
16 BS015X84MAMUTTER, CENTERLOCK .38-
17 BS423238MAIDLER PULLEY
18 BS092148MABREMSFEDER ASSY
19 BS092169MALOCHSTOPFEN
20 BS092128MAPULLEY-JACKSHAFT 46
21 BS093052E701
22 BS0031X4MAPIN, HAIR .56D - .09
23 BS17X171ZMAUNTERLEGSCHEIBE.18.88.05 FLAT
24 BS030X33
25 BS774089MAPULLEY BS 4'' PLASTIC
26 BS092130 Z
27 BS0025X7MAMOTORBOLZEN 3/8 X 1.25
28 BS010851ZMAUNTERLEGSCHEIBE
29 BS017X91MAWASHER,FLAT .54.81
31 BS165X80MAZUGFEDER
32 BS17X168ZMAUNTERLEGSCHEIBE.39-1.2-.11 FL
33 BS092220E701MALEITROLLENHALTERUNG ASSY
34 BS092180MASPACER-BUSHING
35 BS26X249MASCREW-.312-18X.75
36 BS15X792
37 BS092115E701
38 BS092158E701MASTREBE, KIPPHEBEL
39 BS17X103MAUNTERLEGSCHEIBE.53X1X.12 FLAT
40 BS093097E701MABRACKET ADJUSTERS
41 BS092138E701
42 BS092109E701MABRKT ASSY LH LIFTER
43 BS092132ZMAEINSTELLMUTTER
44 BS092134ZMAEINSTELLSTANGE; JUSTIERSTANGE
45 BS092139E701MABRACKET, LH COVER
46 BS092116ZMAROD-BELT GUIDE
47 Murray NUT,CENTERLOCK Z .3BS015X88MANUT,CENTERLOCK Z .3
48 BS092104E701MABRKT - HINGE
49 BS092159ZMADEFLEKTORSTANGE
50 BS093088E701MAHALTERUNG ASSY HEBEVORRICHTUNG
51 BS093096E701MAAUFHANGUNGSVERBINDUNG
52 BS028X23MAPUSH CAP.375
53 BS166X34MATORSIONSFEDER
54 BS092100MADEFLECTOR-CHUTE-46
55 BS092103E701MADEFLEKTOR, SCHACHT
56 BS092140E701MADECKELHALTERUNG LINKS
57 BSEingangswelle UE 600
58 BS017X57MAUNTERLEGSCHEIBE.47.72 16G FLT
59 BS002X53MABOLT,CRG .31-18 X 0.
60 BS091739ZMAHANGER ROD
61 BS94729E700
62 BS17X124MAWASHER.40.81 16G FLT
63 BS092119SEMAVORDERE AUFHANGUNG HALTER
65 BS092137MAROLLER
66 BS030X49MAPIN-COTTER.13D-1.25L
67 BS01X111MABOLT-HEX.37-16X1.50 Z
68 BS492574MAJACKSHAFT HSNG
69 BS091754MASCREW,GUIDE 5/16-18 Z
70 BS056631E701MASINGLE BLADE - 056631
71 Murray WASHER.62-1.7 11G - BBS17X166MAWASHER.62-1.7 11G - B
72 Murray UNTERLEGSCHEIBE.62-1.0-.18 FLBS17X165MAUNTERLEGSCHEIBE.62-1.0-.18 FL
73 Murray MUTTER.56-18 REG UNF Z-YBS15X100MAMUTTER.56-18 REG UNF Z-Y
74 BS092163MASTRIP-INDICATOR
76 Murray ADAPTER- MESSERBS092466MAADAPTER- MESSER
77 BS002X73MABOLT,CRG .31-18X0.50
78 BS009X23
79 BS092683MAWHEEL, GUAGE
80 BS094918E701MAHALTERUNG, RECHTS RADSTELZE
81 BS094919E701MABRACKET, L GAGE WHEEL
82 BS17X102MAUNTERLEGSCHEIBE-MAHER
83 BS093086E701MABLADE HSNG 46
84 BS009X42MABOLT,SHD .38-16X.600D
-- BS403337A
