Murray M2265HW (7800454) - 22" Walk-Behind Mower (2010) Deck Assembly (Push, Hi-Wheel) Pièces détachées

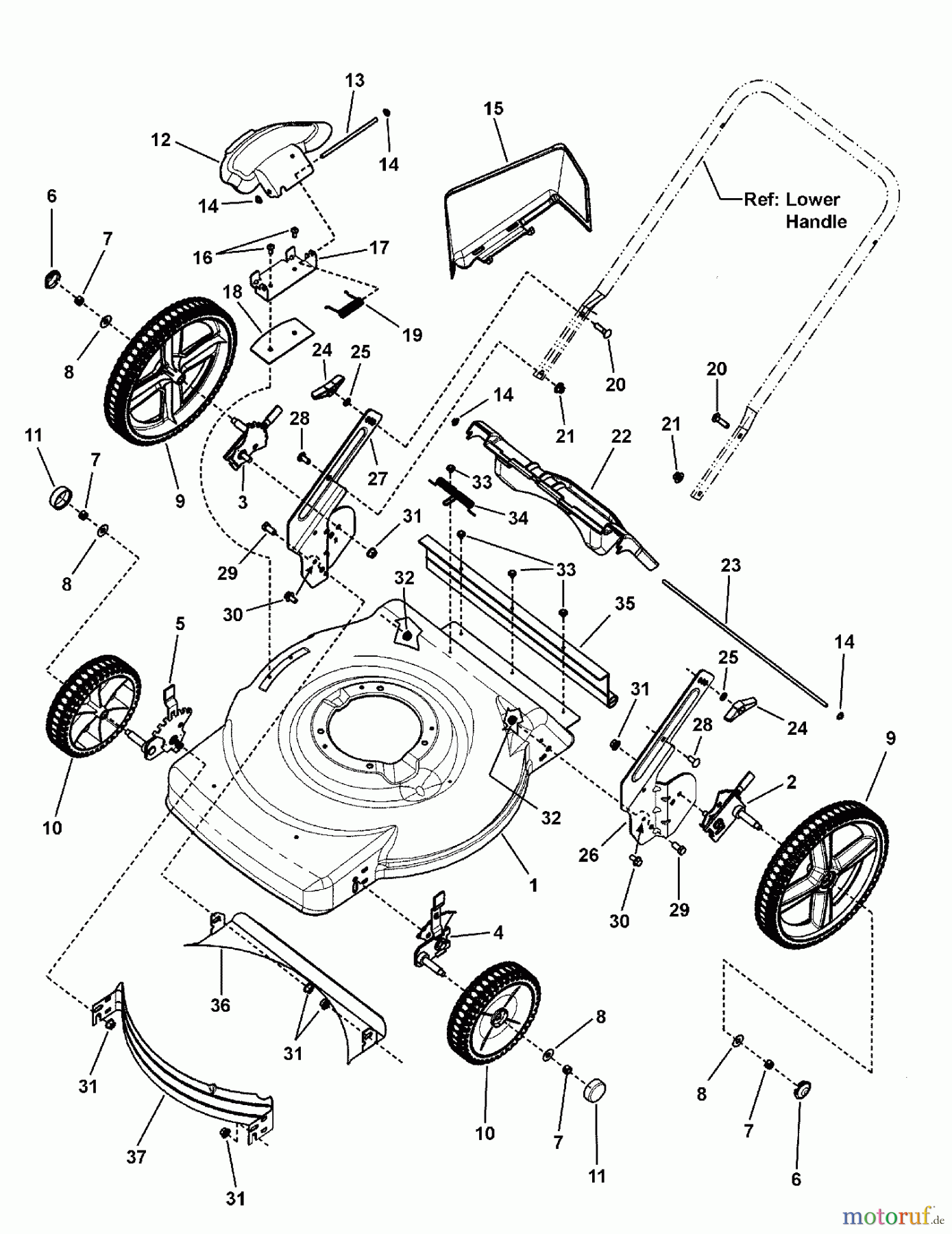

Deck Assembly (Push, Hi-Wheel) M2265HW (7800454) - Murray 22" Walk-Behind Mower (2010)

Vous trouverez ici le dessin de la pièce de rechange pour Murray Rasenmäher M2265HW (7800454) - Murray 22" Walk-Behind Mower (2010) Deck Assembly (Push, Hi-Wheel). Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Murray Rasenmäher M2265HW (7800454) - Murray 22" Walk-Behind Mower (2010) Deck Assembly (Push, Hi-Wheel) et commandez simplement en ligne. De nombreuses pièces de rechange Murray nous gardons en permanence dans notre entrepôt pour vous.

Pos.	Numéro d'article	Description
1	BS7300401ZYP	DECK, 22"
2	BS7501066YP	HOC ASSY, MURRAY, 7
3	BS7501065YP	HOC ASSY, MURRAY, 7
4	BS7501064YP	HOC ASSY, MURRAY, 7
5	BS7501063YP	HOC ASSY, MURRAY, 7
6	BS7101931MA	HUBCAP, 12 WHEEL, BL
7	BS7091585SM	HCLN, 3/8C GR5 YZ
8	BS17X169MA	UNTERLEGSCHEIBE.377-1-.03 FLT
9	BS7501399YP	RAD, 12X2
10	BS7501389YP	RAD, 8X2 LEITRAD
11	BS7101351MA	HUBCAP, ROUND, BLACK
12	BS1101098MA	MULCH ABDECKUNG 22RB SCHWARZ
13	BS215X19ZMA	STANGE.250 DIA X 5.55
14	BS7091020YP	PUSHNUT 1/4
15	BS1101097MA	CHUTE DEFLECTOR
16	BS26X217MA	GEWINDESCHRAUBE .25 .625 LG
17	BS7300855ZMA	HALTER-RAMPE
18	BS7300856ZMA	BLECH, MULCH 22 RB
19	BS166X38MA	TORSIONSFEDER
20	BS7091714YP	BOLZEN, 5/16-18X1
21	BS7090951SM	HCLN, LARGE, 5/16C BZ
22	BS7101243YP	KLAPPE, HINTEN, 22
23	BS7101070YP	GESTANGE, KLAPPE HINTEN
24	BS671294MA	FLUGELKNOPF 5/16-18 RE
25	BS7090391SM	ITLW, 5/16
26	BS7300583ZMA	BRACKET, LOWER HANDLE
27	BS7300582ZMA	HALTER, HANDGRIFF UNTEN
28	BS7090134MA	HHCS, 3/8-16 X 3/4
29	BS7091508SM	RHSSNB, 5/16C X3/4 GR
30	BS7090606SM	HFLB, 5/16C X5/8 ZP
31	BS7900053MA	NUT, 3/8-16, BRIGHT Z
32	BS7090585MA	NUT .31-18 FLANGELOCK
33	BS7091286YP	HWST, 10-24X.50 SEMS
34	BS7101461YP	SPRING, TORSION, REAR
35	BS7102422YP	SCHUTZ, HECK 22 HW
36	BS7300854ZMA	BAFFLE, REAR, 22 DEC
37	BS7300440ZMA	LEITBLECH, VORN, 22" WB
