Snapper RD2140 (2690774) - 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series Controls Group Pièces détachées

Controls Group RD2140 (2690774) - Snapper 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series

Snapper Rasen- und Gartentraktoren RD2140 (2690774) - Snapper 40

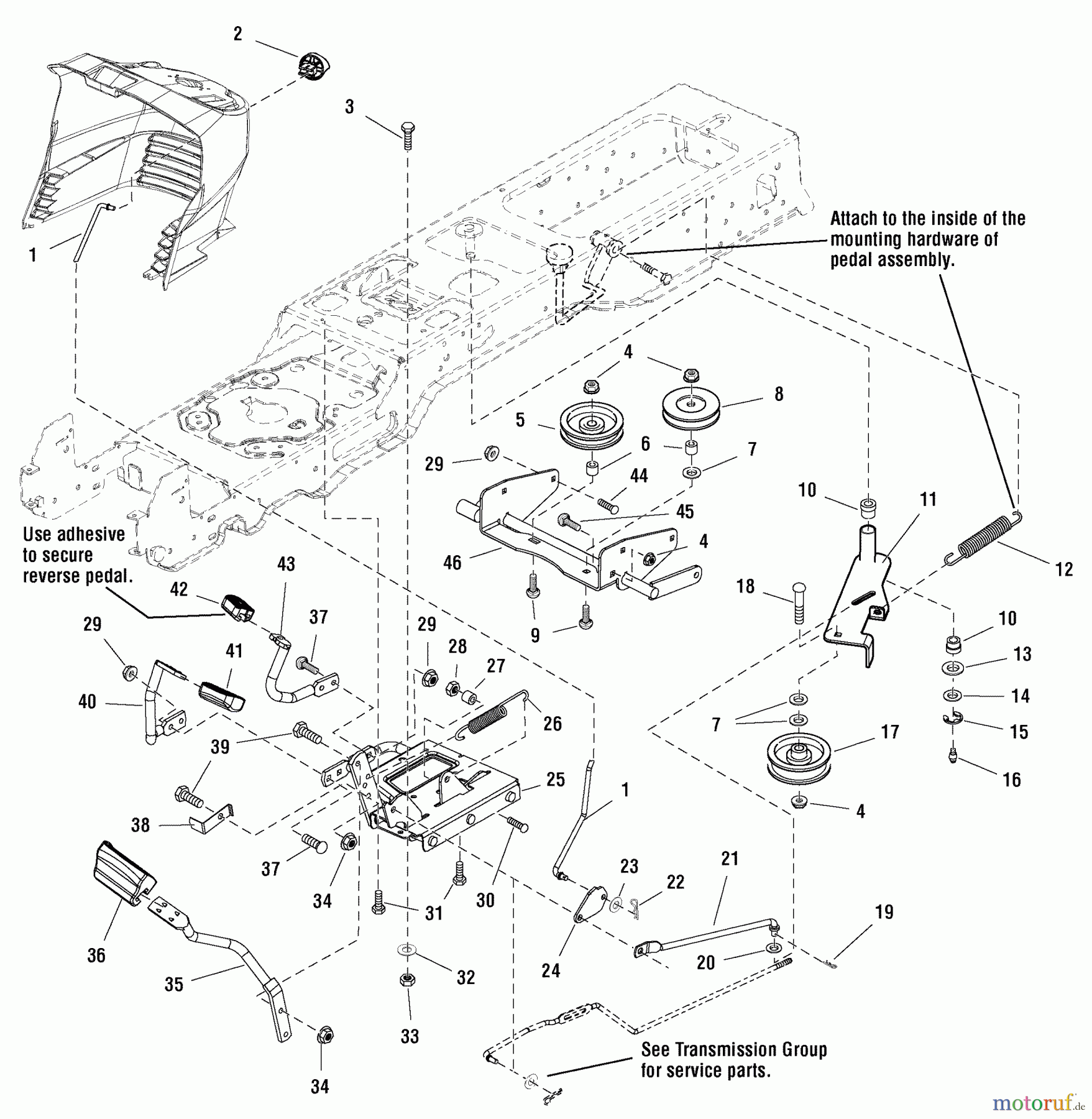

Vous trouverez ici le dessin de la pièce de rechange pour Snapper Rasen- und Gartentraktoren RD2140 (2690774) - Snapper 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series Controls Group. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Snapper Rasen- und Gartentraktoren RD2140 (2690774) - Snapper 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series Controls Group et commandez simplement en ligne. De nombreuses pièces de rechange Snapper nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BS1721353SMROD-BRAKE LOCK B
2 BS1721891SMKNAUF-PARKBREMSE
3 BS9357MASCHRAUBE, 5/16-18X .75WD
4 BS703158MUTTER
5 BS1721134SMROLLE, 3" OD
6 BS1667811SMDISTANZBUCHSE
7 BS1922755SMABZIEHER-SCHEIBE
8 BS1710545SMPULLEY-IDLER 04.00 OD
9 BS1960315SMBOLZEN-RD HD SH SQ NK 3
10 BS1663114SMBUCHSE
11 BS1727370
12 BS1733844SMFEDER 1.03 ODX
13 BS1960020SMSCHEIBE-0.625(0.65IDX1
14 BS1924366SMWASHER-0.625(0.66IDX1
15 BS1704420SMRING-KLIPRING EXT FOR
16 BS1704314SMSCHMIERNIPPEL 250 DR
17 BS1710539SMPULLEY-IDLER 03.25 OD
18 BS1960315
19 BS703312PIN, COTTER, 3/32X.75
20 BS703878WASHER, FLAT
21 BS1727408SMROD-.375DIA 10.24 LG
22 BS1722460SMPIN-QUICK .080WIRE 1.
23 BS1921319SMABZIEHER-SCHEIBE
24 BS1721354ASMLATCH-BRAKE LOCK-BLAC
25 BS1726763AYPPEDAL KOMPL.
26 BS1721995SMFEDER SEK. 620
27 BS1686612SMHULSE
28 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
29 BS1960636SMNUT-HEX KEPS 5/16-18
30 BS703178BOLZEN, FAHRWERK
31 BS703228SCHRAUBE, 5/16-18 X .75
32 BS703298U-SCHEIBE, GR5, 5/16
33 BS1919438SM
34 BS703330MUTTER, 5/16-18
35 BS1722535ASMPEDAL-BRAKE .625DIA R
36 BS1721577SMBELAG-BREMSPEDAL
37 BS1931334SMBOLZEN-STREBE HD SH SQ NK 5
38 BS1722083ASMACTUATOR-SWITCH-BLACK
39 BS703585CAPSCREW, 5/16-18X1
40 BS1722070ASMPEDAL-FORWARD .625DIA
41 BS1721675SMPAD-FOOT PEDAL F
42 BS1721674SMFU?STUTZE PEDAL RE.
43 BS1722071ASMPEDAL-RUCKFAHR .625DIA
44 BS703185RHSSNB
45 BS703448BOLZEN, 3/8-16X.75 G5
46 BS1726087ASMSUPPORT - LIFT
