Snapper YT2452 (2691030-00) - 52" Yard Tractor, 24 HP, Hydro Drive, RMO,YT400 Series Seat & Seat Deck Group - EVAP Compliant Pièces détachées

Seat & Seat Deck Group - EVAP Compliant YT2452 (2691030-00) - Snapper 52" Yard Tractor, 24 HP, Hydro Drive, RMO,YT400 Series

Snapper Rasen- und Gartentraktoren YT2452 (2691030-00) - Snapper 52

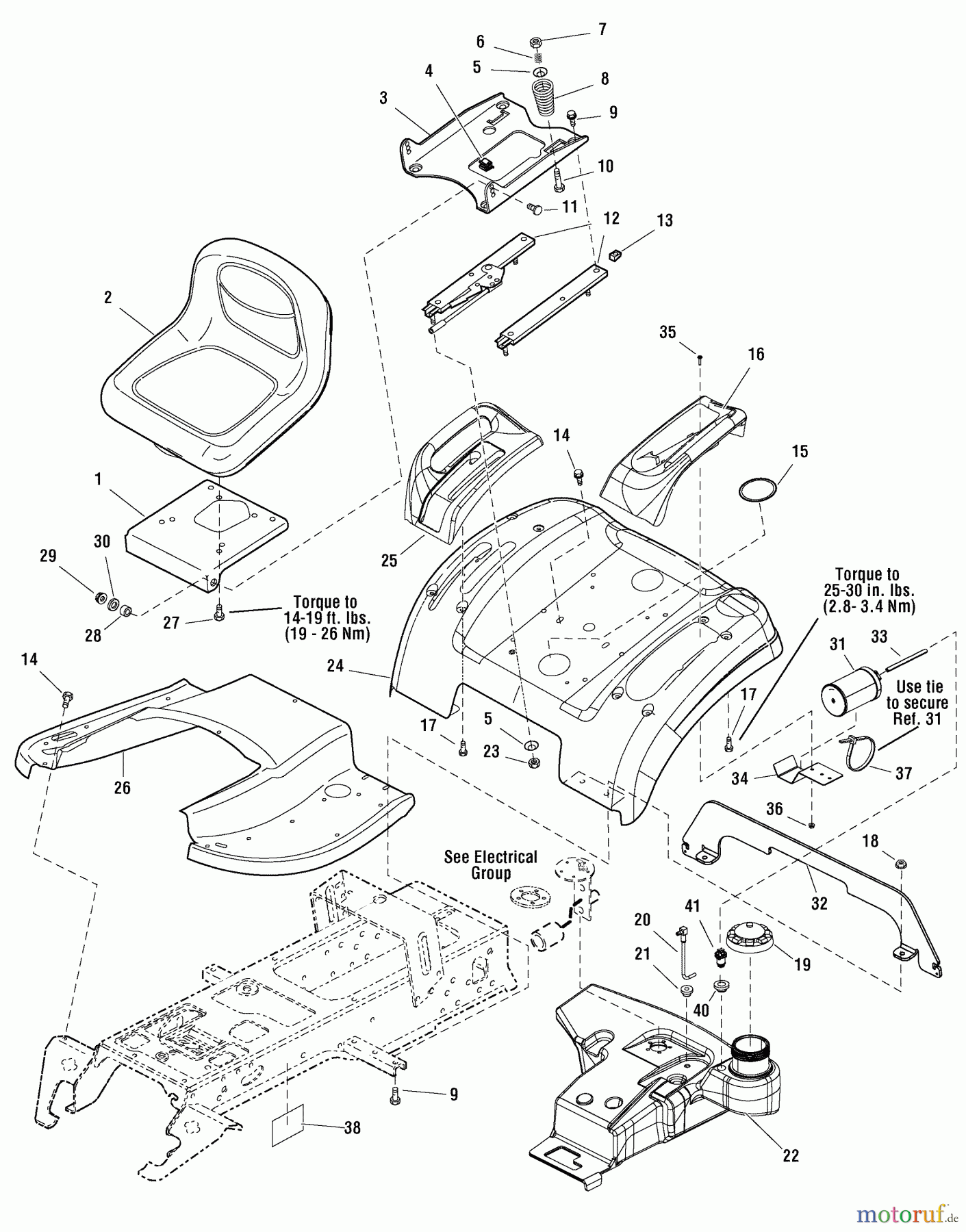

Vous trouverez ici le dessin de la pièce de rechange pour Snapper Rasen- und Gartentraktoren YT2452 (2691030-00) - Snapper 52" Yard Tractor, 24 HP, Hydro Drive, RMO,YT400 Series Seat & Seat Deck Group - EVAP Compliant. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Snapper Rasen- und Gartentraktoren YT2452 (2691030-00) - Snapper 52" Yard Tractor, 24 HP, Hydro Drive, RMO,YT400 Series Seat & Seat Deck Group - EVAP Compliant et commandez simplement en ligne. De nombreuses pièces de rechange Snapper nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BS1722129ASMBRACKET-SEAT VIP-BLAC
2 BS1731999
3 BS1722128ASMSUPPORT-SEAT VIP-BLAC
4 BS2172434SMKABELCLIP DIA .390
5 BS1709256SMFEDERSCHEIBE 0.328I
6 BS1714263SMFEDER 0.40
7 BS1919438SM
8 BS1717051SMFEDER 947
9 BS9357MASCHRAUBE, 5/16-18X .75WD
10 BS1931339SMBOLZEN 5/16
11 BS703815BOLT, RD SQ 3/8-16X1
12 BS1722356SMSLIDE-SEAT (2 PC
13 BS1935255SMNUT, SPEED, 5/16-18 L
14 BS703949SCHRAUBE, 5/16-18.625
15 BS1722309SMSTOPFEN 3.00 DI
16 BS1729711SMPOD W/CUP HOLDER,12V
17 BS2860664SMSCHRAUBE
18 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
19 BS5103005YPCAP, FUEL, EVAP
20 BS1722340SMFORMSCHLAUCH KOMPL.
21 BS1654930SMVENTILDECKEL
22 BS1751622
23 BS1960636SMNUT-HEX KEPS 5/16-18
24 BS1722106C
24 BS1722106DSMDECK-SEAT 16GA-RED
25 BS1722108SMPOD-RH BLACK POL
26 BS1722105CSMTUNNEL-VIPER 16G-ORAN
26 BS1722105DSMTUNNEL-VIPER 16G-RED
27 BS1960667SMSECHSK.SCHRAUBE SELBSTS.
28 BS1663752SMDISTANZHULSE-0.39OIFX0.624O
29 BS703893NUT, CNTR LCK, 3/8-16
30 BS703878WASHER, FLAT
31 BS1751599YPCARBON CANISTER 300CC
32 BS1727949ASMAUFNAHME- MAHER HANGER
33 BS7700552x5
34 BS1752099A
35 BS1960589SMSCREW-RD HD PHILLIPS
36 BS1960591SMNUT-HEX KEPS #10-24 B
37 BS1701011SMTIE, SELF LOCKING .18
38 BS1752230
40 BS799624KABELTULLE
41 BS7104638YPREMOTE VENT ASSEMBLY
