Snapper ZF2501KH (84574) - 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 73" Mower Deck Assembly Pièces détachées

73" Mower Deck Assembly ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 73

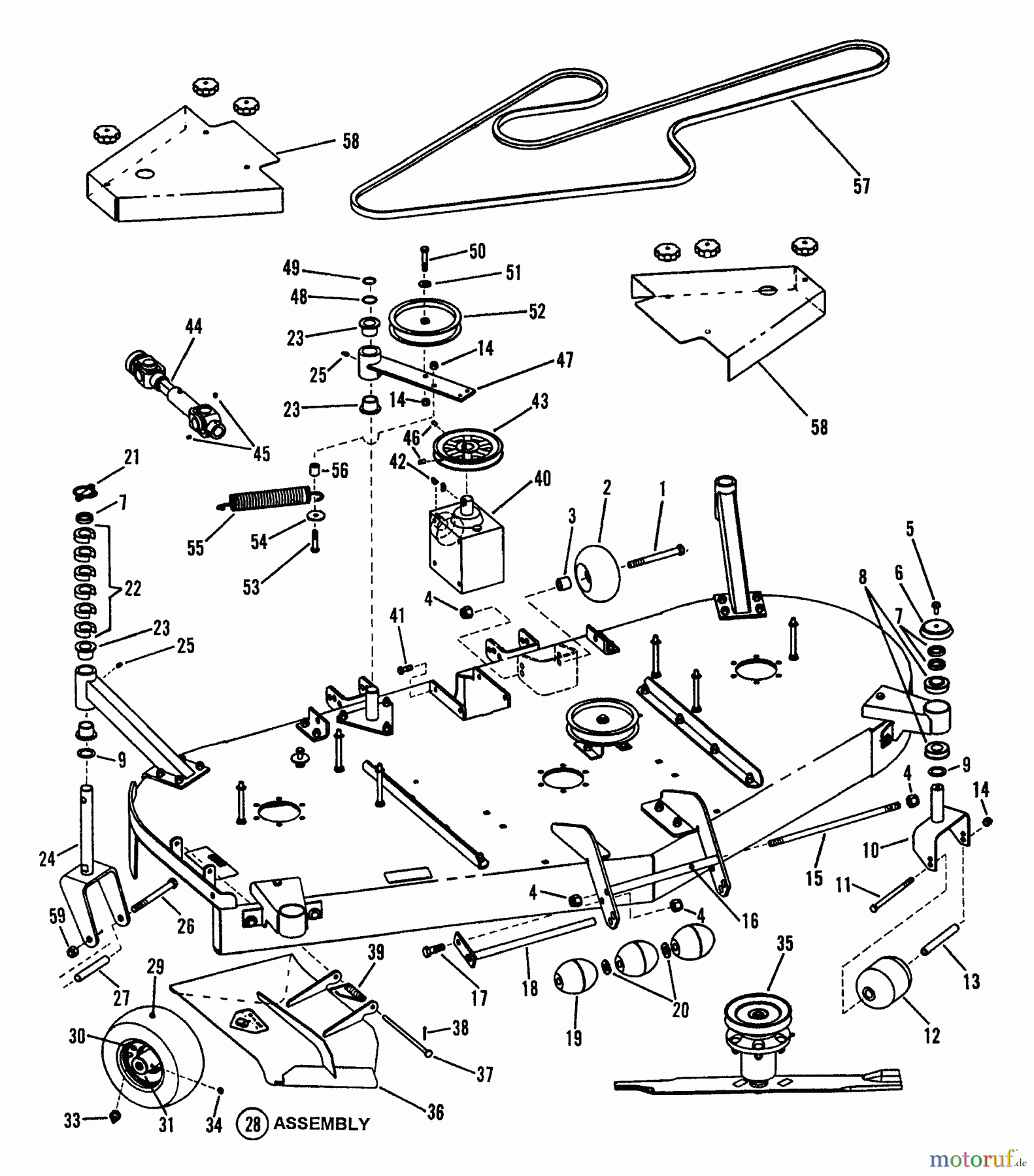

Vous trouverez ici le dessin de la pièce de rechange pour Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 73" Mower Deck Assembly. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 73" Mower Deck Assembly et commandez simplement en ligne. De nombreuses pièces de rechange Snapper nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BS703886CAPSCREW, 1/2-13X5
2 BS1700184SMRAD - 2.60 BREIT 4.9
3 BS7036456YPSPACER, YZ
4 BS7091325YPHLN, NYLON, 1/2C YZ
5 BS703228SCHRAUBE, 5/16-18 X .75
6 BS7036578YPCAP, CASTER SHAFT
7 BS7028641YPSPACER, ELEC CL
8 BS7044892YP(C) BEARING, RADIAL 1
9 BS7023747YPBUSHING, MACH, 1
10 BS7044646YPCASTER, GAUGE WHEEL
11 BS7091617YPHHCS, 3/8C X6 GR5 YZ
12 BS7079868YP(C) ROLLER, 3-3/4 D.X
13 BS7079882YP(C) BUSHING
14 BS703117MUTTER
15 BS7036461YP(C) ROD, THREADED ROL
16 BS7036460YP(C) TUBE, ROLLER
17 BS7091884YP(C) HHCS, 1/2C X1-1/2
18 BS7027327YP(C) WELD, PIVOT PIN,
19 BS7073142YPROLLER, DECK, BLACK
20 BS7027344SMFW, .668X1.324X.098 Y
21 BS5020655SM
22 BS7019152YP(C) SPACER, CASTER
23 BS7023556YPBUSHING, CASTER
24 BS7046523YP(C) WELD, CASTER YOKE
25 BS703153ZERK,GREASE FITTING
26 BS7091326YPHHCS, 1/2C X5-1/2
27 BS7022151YP(C) SLEEVE, AXLE
28 BS7058167YPWHEEL ASSY, 9 X 3.50-
29 BS7029870YP(C) TIRE, 9X3.50X4
30 BS7057737YP(C) RIM ASSY,9X3.50-4
31 BS7022394YP(C) BEARING, FLANGED
32 BS7022395YP(C) BEARING, ROLLER
33 BS7012234SMVALVE STEM
34 BS7046430YPMONTAGEFETT
35 BS7054011YPSPINDLE ASMY
36 BS7058898YP(C) WELD, CHUTE, 73",
37 BS7029277YPPIN, HINGE, CHUTE
38 BS7091313YPSPLINT
39 BS7027950YPSPRING, CHUTE
40 BS7046624YP(C) GEARBOX, RIGHT AN
41 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
42 BS7013857YPKEY, WOODRUFF, 1/4X7/
43 BS7073290YP(C) PULLEY, CAST 6.50
44 BS7057863
45 BS7090132YPHRSS, 3/8C X3/8 GR5
46 BS1930540SMSCHRAUBENSATZ SQ HD CUP P
47 BS7042619YP(C) WELD, IDLER ARM,
48 BS7032031YPFW, 1.031X1.25X.03
49 BS7012709YPRETAINING RING, 1" OD
50 BS7091305SMHHCS, 3/8C X2 GR5 YZ
51 BS7090517SMFW, .438X1X.084 YZ
52 BS7035789YPPULLEY, IDLER 5.5 OD
53 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
54 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
55 BS7035667YP(C) SPRING, EXTENSION
56 BS7035858YP(C) SPACER, .750 OD X
57 BS7073328YP(C) BELT, 153.12
58 BS7046644YP(C) GUARD, PULLEY
59 BS703453STOPMUTTER, 1/2-13,GR5
