Snapper RT2451 - Walk-Behind Trimmer RT2451 Gear Head, Tube & Bushing Assmy And Plastic Shield Pièces détachées

RT2451 Gear Head, Tube & Bushing Assmy And Plastic Shield RT2451 - Snapper Walk-Behind Trimmer

Snapper Trimmer RT2451 - Snapper Walk-Behind Trimmer RT2451 Gear Head, Tube & Bushing Assmy And Plastic Shield

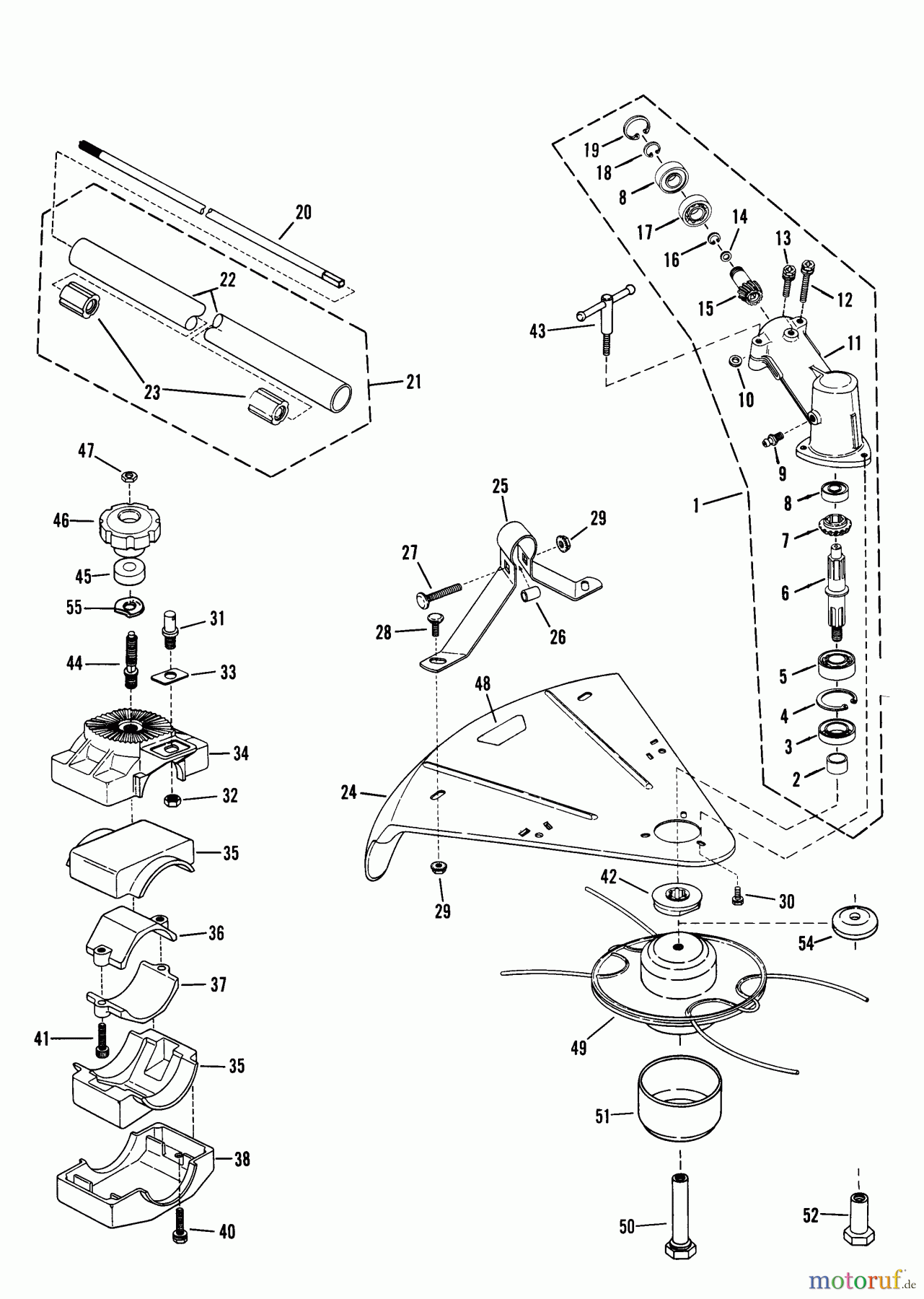

Vous trouverez ici le dessin de la pièce de rechange pour Snapper Trimmer RT2451 - Snapper Walk-Behind Trimmer RT2451 Gear Head, Tube & Bushing Assmy And Plastic Shield. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Snapper Trimmer RT2451 - Snapper Walk-Behind Trimmer RT2451 Gear Head, Tube & Bushing Assmy And Plastic Shield et commandez simplement en ligne. De nombreuses pièces de rechange Snapper nous gardons en permanence dans notre entrepôt pour vous.

Pos.	Numéro d'article	Description
1	BS7043005YP	GEAR HEAD, 30 DEG.
2	BS7043023
3	BS7043912YP	SEAL, OIL
4	BS7043917YP	SNAP RING
5	BS7043913YP	BEARING ##
6	BS7043020
7	BS7043022
8	BS7043914YP	BEARING ##
9	BS7043937YP	GREASE FITTING, ZERK
10	BS7043032
11	BS7043019YP	CASE, GEAR
12	BS7043028
13	BS7043029
14	BS7043031
15	BS7043021
16	BS7043030
17	BS7043025
18	BS7043027
19	BS7043026
20	BS7023432YP	SHAFT, DRIVE, 1/4", W
21	BS7051787YP	TUBE / BUSHING ASSY.
22	BS7051787
23	BS7015517YP	BEARING ASSY.
24	BS7047896YP	SPOT WELD,SHIELD #
25	BS7036154YP	BRACE, SHIELD #
26	BS7023549YP
27	BS002X97MA	BOLT, CARR 5/16
28	BS703798	BOLT, 5/16-18X0.50
29	BS703409	MUTTER, 5/16-18, GR5
30	BS7043963YP	HEX BOLT, M5X10
31	BS7016317
32	BS7090962YP	HFLN, 3/8F ZP
33	BS7032825
34	BS7043947
35	BS7043132
36	BS43136
37	BS7043137
38	BS7043946
39	BS7043947
40	BS7043951
41	BS7043952
42	BS7016468YP	HOLDER A ##
43	BS7043028
44	BS7016261
45	BS7016313
46	BS7016267
47	BS7016278
48	BS7015094YP	DECAL, DIRECTION
49	BS7057500
50	BS7023099YP	ADAPTER, FLH, LH
51	BS7038547YP	GLIDE BALL ##
52	BS7023734YP	ARBOR, GLIDE BALL
53	BS7043911
54	BS7016469
55	BS7017101
