Snapper GC9520KW (84449) - 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Seat Pedestal Group Pièces détachées

Seat Pedestal Group GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0

Snapper Utility Vehicles GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Seat Pedestal Group

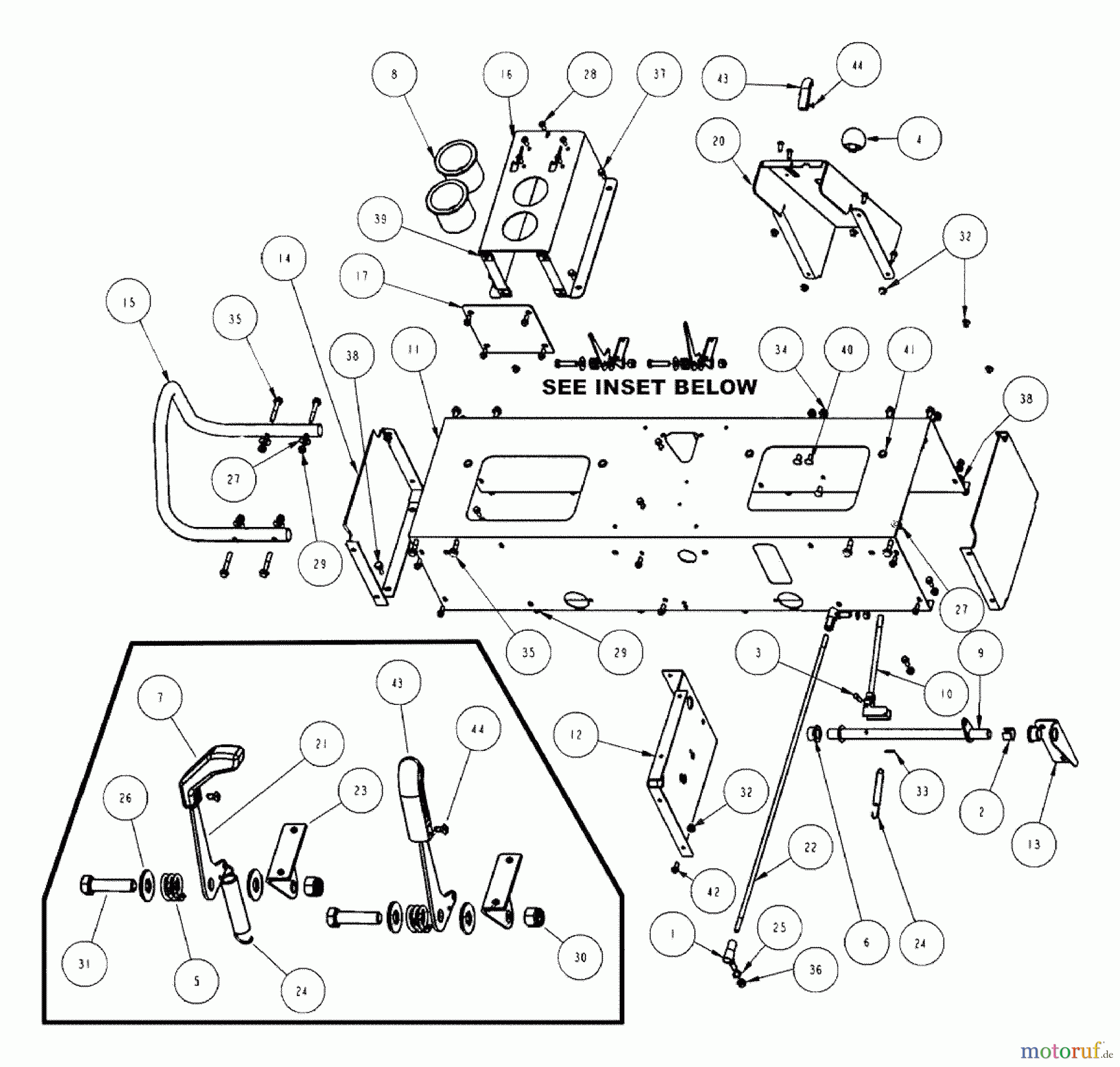

Vous trouverez ici le dessin de la pièce de rechange pour Snapper Utility Vehicles GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Seat Pedestal Group. Sélectionnez la pièce de rechange requise dans la liste des pièces de rechange de votre appareil Snapper Utility Vehicles GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Seat Pedestal Group et commandez simplement en ligne. De nombreuses pièces de rechange Snapper nous gardons en permanence dans notre entrepôt pour vous.

Pos.Numéro d'articleDescription
1 BS7010745
2 BS7012068YPRING, HEBEARM HINTEN
3 BS7012393YPCLEVIS PIN, 1/4X1-1/8
4 BS7014501YPBALLENGRIFF 7/16-14
5 BS7028036YPSPRING
6 BS7035496YPBEARING, .750 ID
7 BS7073484YP(C) HANDLE, RED PARK
8 BS7042968
9 BS7058430YP(C) WELD, TRANSM. SHI
10 BS7058431YP(C) WELD, TRANS SHIFT
11 BS7072503YP(C) PEDESTAL, SEAT
12 BS7072505
13 BS7072508YP(C) BRKT, HI-LO CAM
14 BS7072585
15 BS7072586YPHANDLE, RH
16 BS7072627
17 BS7072628
18 BS7072937YP(C) CABLE, CHOKE
19 BS7072939YPCABLE, DIFF LOCK
20 BS7072953YP
21 BS7072994YPLEVER, PARK BRAKE
22 BS7073001YP(C) ROD, CVT SHIFT
23 BS7073009YP(C) BRKT, DIFF LOCK H
24 BS7029740YP(C) SPRING, EXTENSION
25 BS703930WASHER, INT LCK, 3/8
26 BS7090517SMFW, .438X1X.084 YZ
27 BS7090692YPFW, 5/16 X 7/8 X .083
28 BS7090999SMTORXSCHRAUBE 1/4C X5/8
29 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
30 BS703117MUTTER
31 BS7091497SMSECHSK.SCHR.3/8CX1-1/2GR
32 BS703233MUTTER, 1/4-20, GR5
33 BS703312PIN, COTTER, 3/32X.75
34 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
35 BS7091592YPBOLZEN, 5/16-18 X 2
36 BS703895NUT, HEX, 3/8-24
37 BS7091787SM
38 BS7091905SMSCHRAUBE 5/16C X7/8 YZ
39 BS7023295SMBUNDMUTTER, 1/4C
40 BS7090799SMRHSSNB, 5/16C X5/8 GR
41 BS7092079YPINSERT, HX THRD, 5/16
42 BS7091579SMHFLS, 1/4C X1/2 GR5 Y
43 BS7023655YPLEVER, THROTTLE CONT
44 BS7071921YPRIVET, PLASTIC SNAP
