retour à
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73546
>
8900001
>

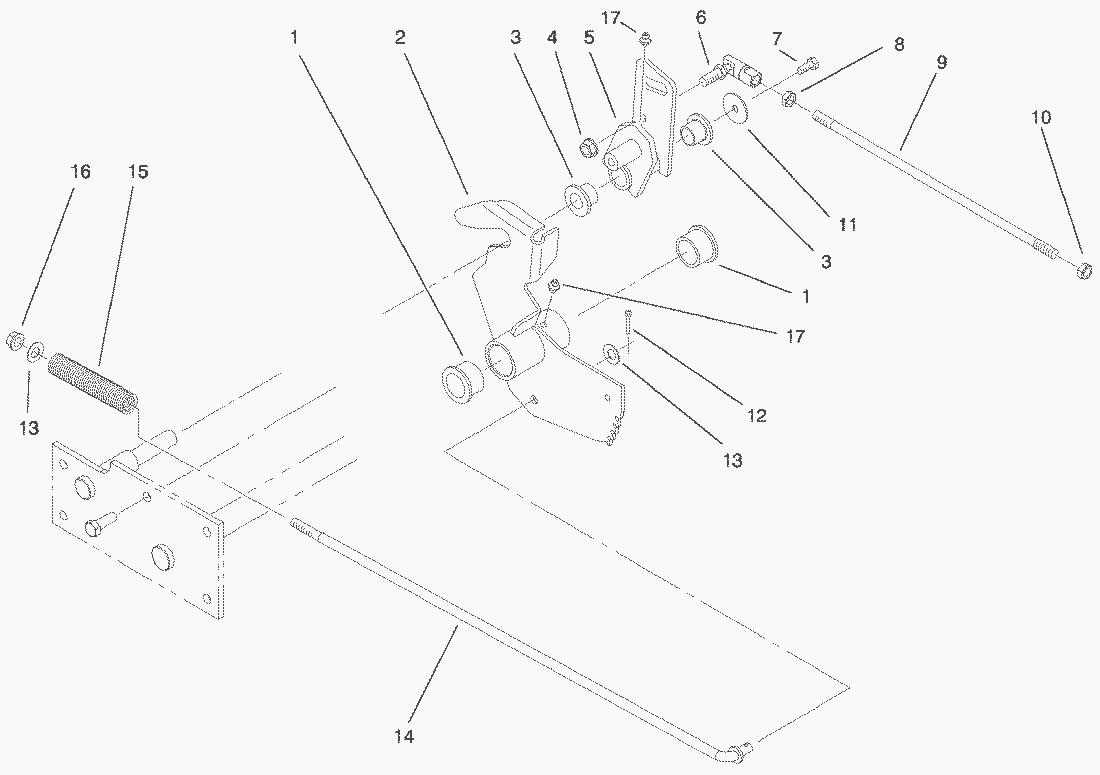

Lower Parking Brake Assy.
Listes de pièces de rechange pour Toro Roth / TORO Lower Parking Brake Assy.
pos.
description
Numéro de référence
1
Bushing-Flanged
94-7574
2
Brake Pivot Plate
94-2375-03
3
Bushing
94-7569
4
Locknut
3296-6
5
Hydro Pivot
94-2488-03
6
Tie Rod End LH
94-7573
7
Screw-Lock
94-7955
8
Jam Nut LH Thread
3220-16
9
Rod-Pivot To Pedal
94-2498
10
Jam Nut
3220-3
11
Washer-Pivot
3256-55
12
Pin-Cotter
3272-10
13
Flat Washer
3256-24
14
Rod-Brake
94-2393
15
Spring-Compression
94-7906
16
Locknut
3296-39
17
Grease Fitting
302-5
